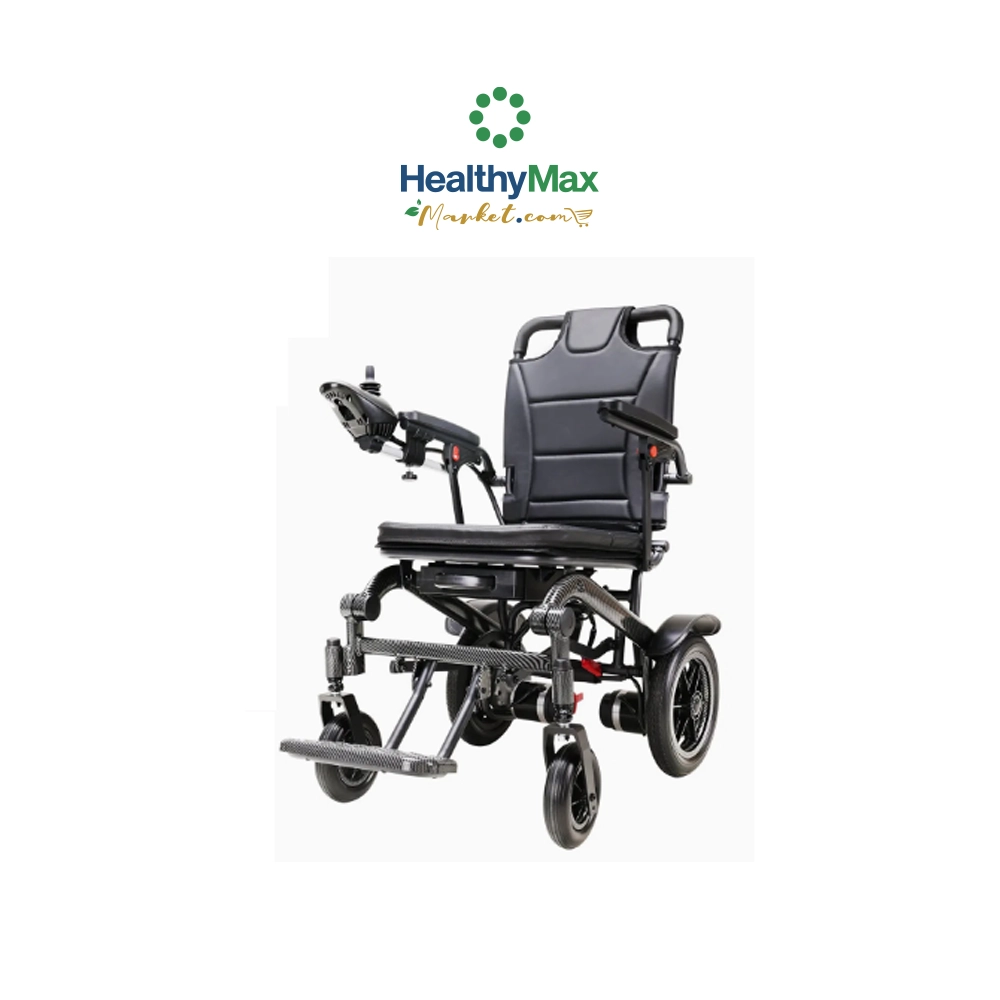

Folding electric travel wheelchair model TD010
MBI Power Wheelchair #TD010
Product details
- The frame is made of printed carbon fiber with a polished finish.
- Uses a 24 V 10 AH lithium battery.
- Uses 2 motors of 180 W each side.
- Adjustable speed control unit, can be moved to either the left or right side.
- Foldable footrest
- Seat size: 41 x 45 x 54 cm. (width x depth x height)
- Width of stroller when folded: 38 cm.
- Backrest height: 53 cm.
- Wheel size: Front wheel 7 inches, rear wheel 12 inches
- Climb over obstacles no higher than 2.5 cm.
- Climb slopes no steeper than 8 degrees.
- Can run 10-15 km per charge.
- Charge the battery for about 6 hours.
- In case the battery runs out, change to the mode where an assistant can push it.
- Folds small enough to fit in the trunk of a small car.
- There is a lithium battery certification document for airlines or shipping lines in case they want to take the wheelchair abroad.
- Electrical system warranty 1 year, battery 1 year
- Maximum weight: 100 kg.
Battery usage :
- Fully charge a new battery before first use, which will allow the battery to reach approximately 90% of its maximum efficiency.
- Recharge the battery fully again for 8-14 hours and use the wheelchair again, the battery will work more than 90% of its full potential.
- After four to five charging cycles, the battery will be used up to 100% and its service life will be longer.
Circuit Breaker
The breaker located in the battery box is set to ensure the safety of the cart when the motor or battery is overloaded.
The breaker will trip to cut off the power. After one or two minutes, the system will automatically reset, and then the cart can be driven again.
Warning : For safety, seat belts must be fastened before driving the wheelchair.
Caution : Please read the manual carefully before use for proper use.
