Description

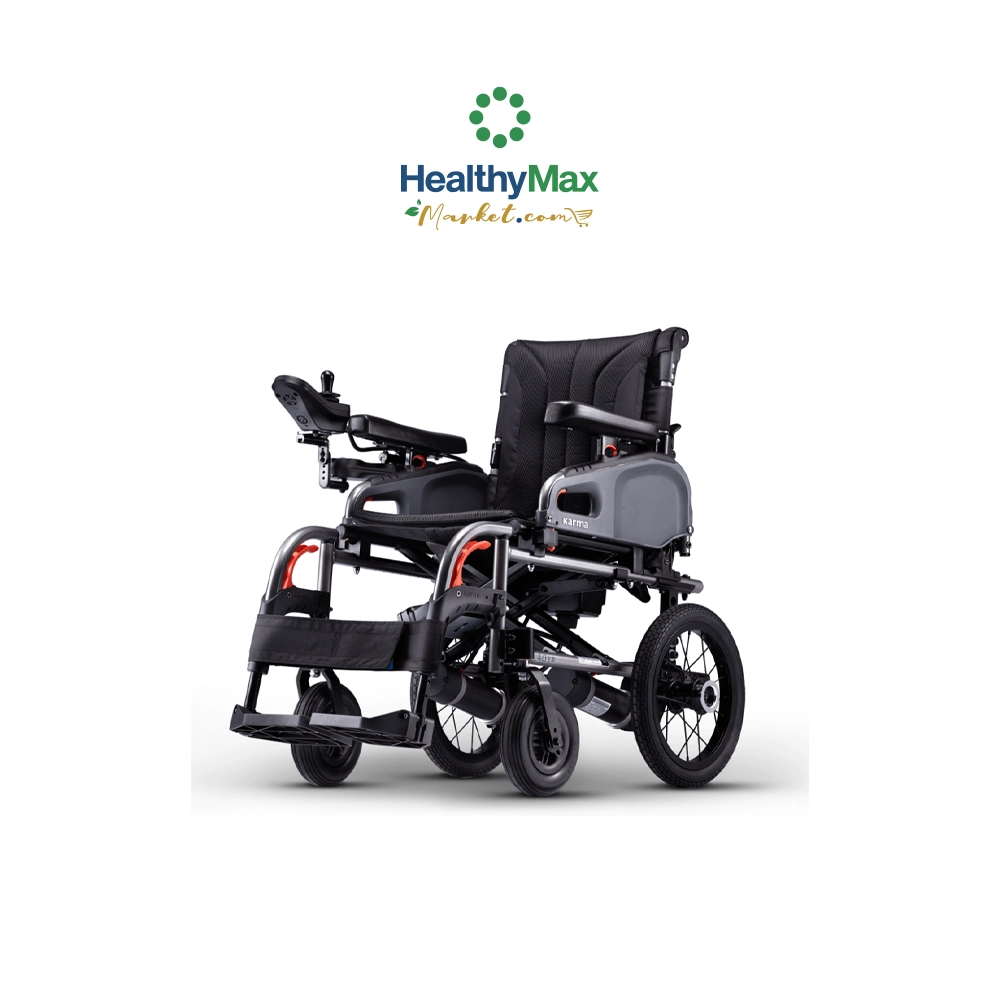

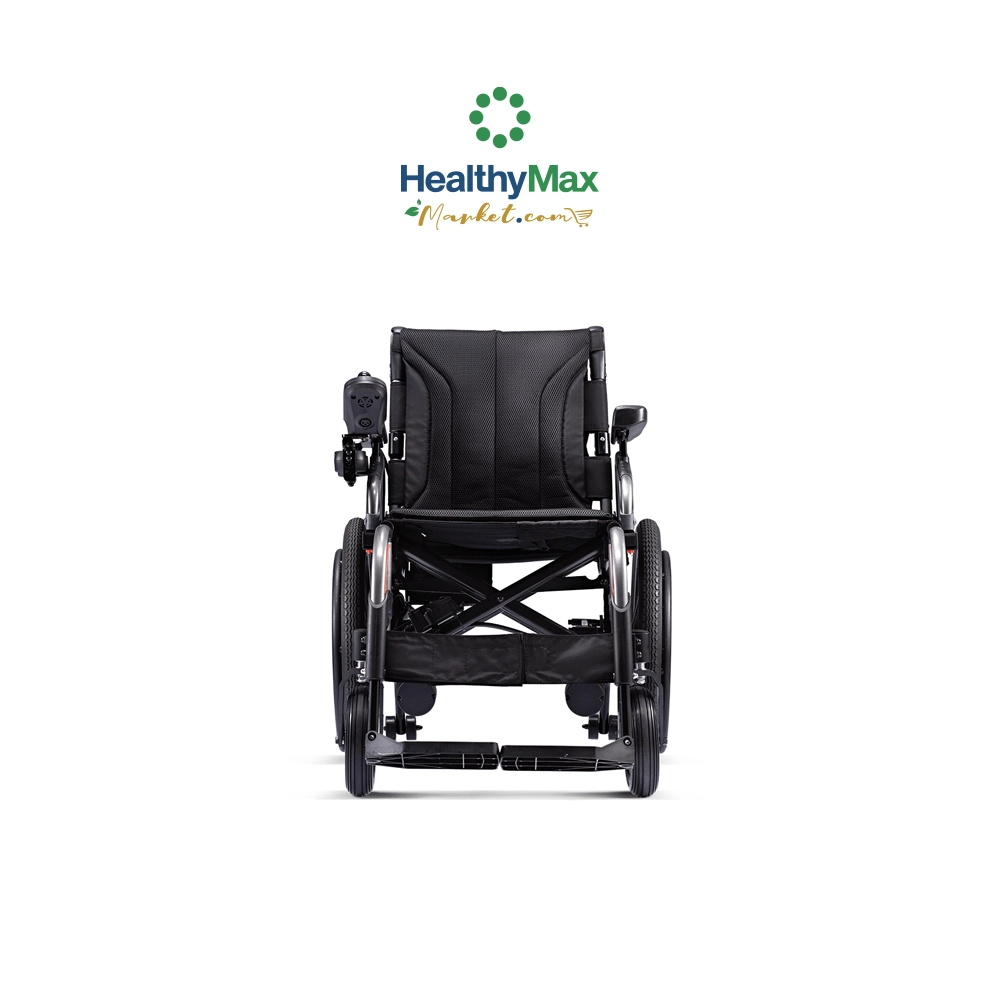

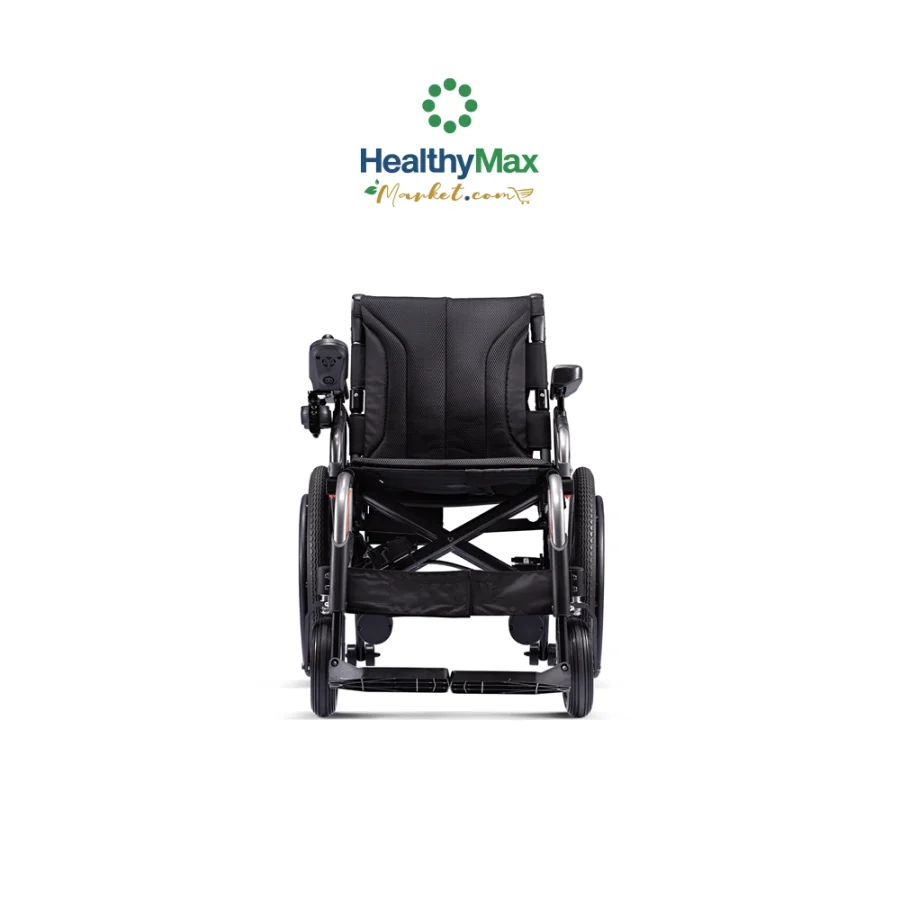

Karma Electric Cart, Eflex Model
KARMA Power Wheelchair eFlexx
Product details

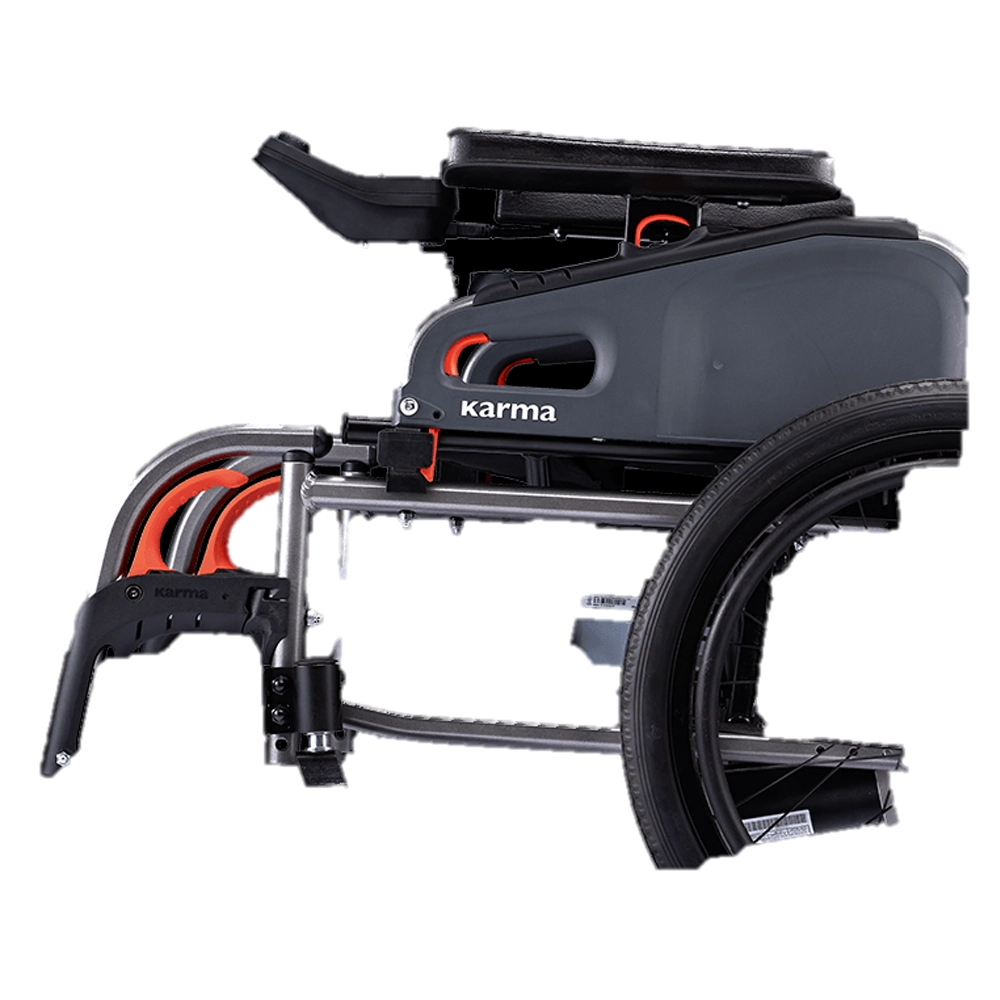

- The electric wheelchair can be folded up without the need to remove the batteries first.
- Body color Silver Black

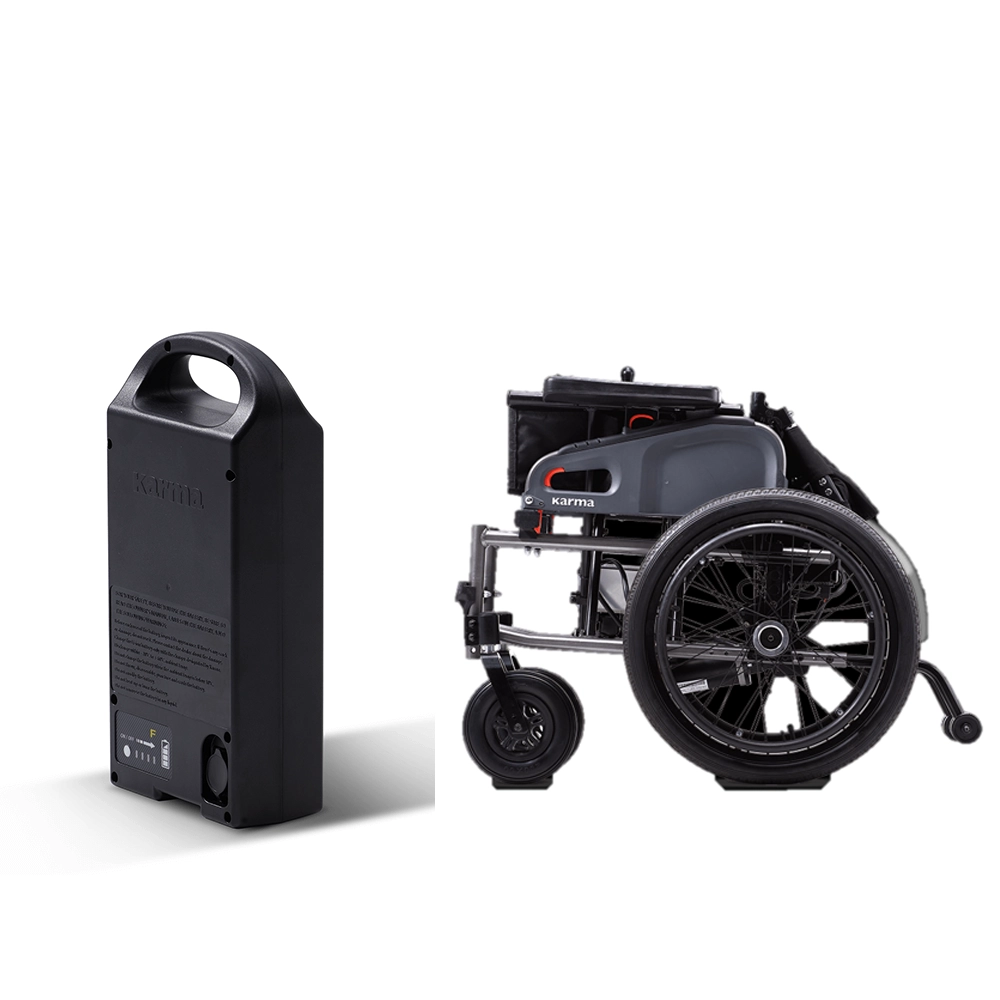

- The battery is removable. Can be done in just one step To bring out the electric charger
- 5 years warranty
- The frame structure is guaranteed for 5 years.
- Control circuit board and battery are guaranteed for 1 year.
- The cart can support a weight of 100 kilograms.
- Passed the crash test according to the international standard ISO 7176-19 while riding on
Transportation vehicles (for the disabled) in the event of a collision due to a wheelchair accident
Will remain in shape according to standard specifications
feature

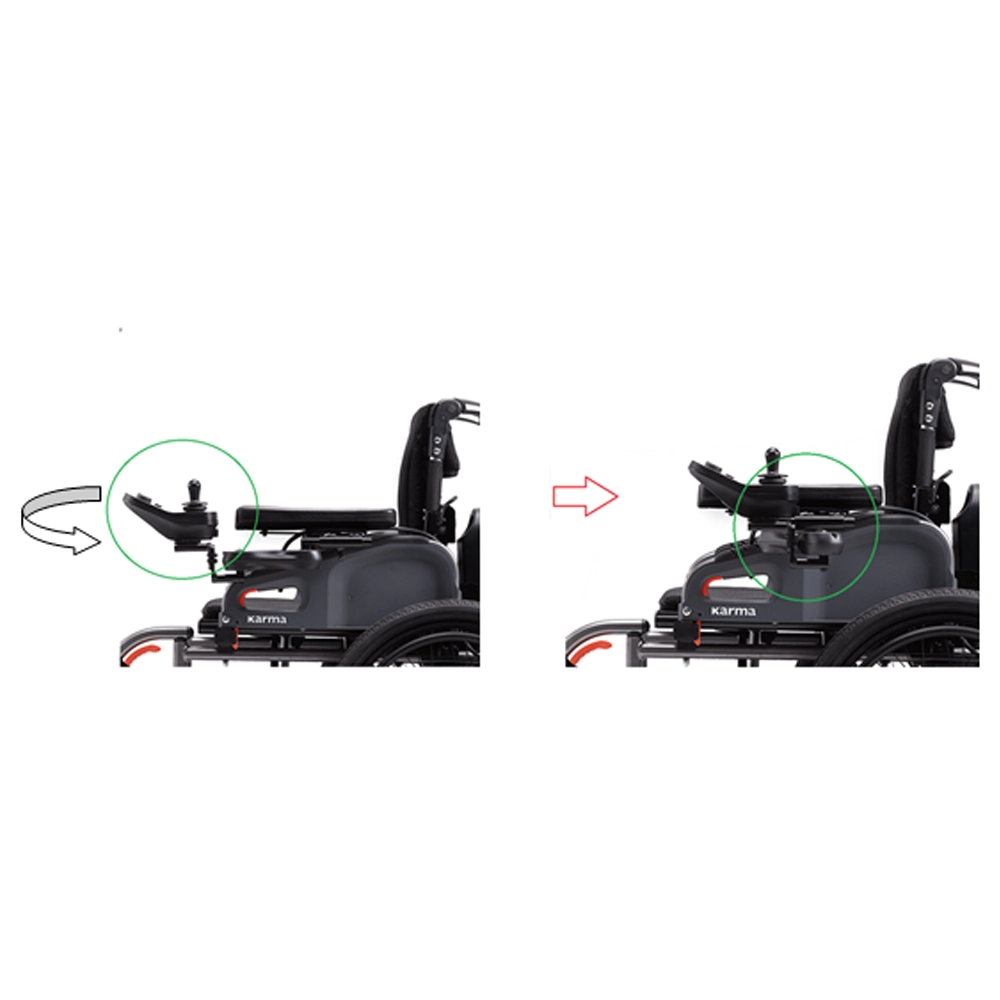

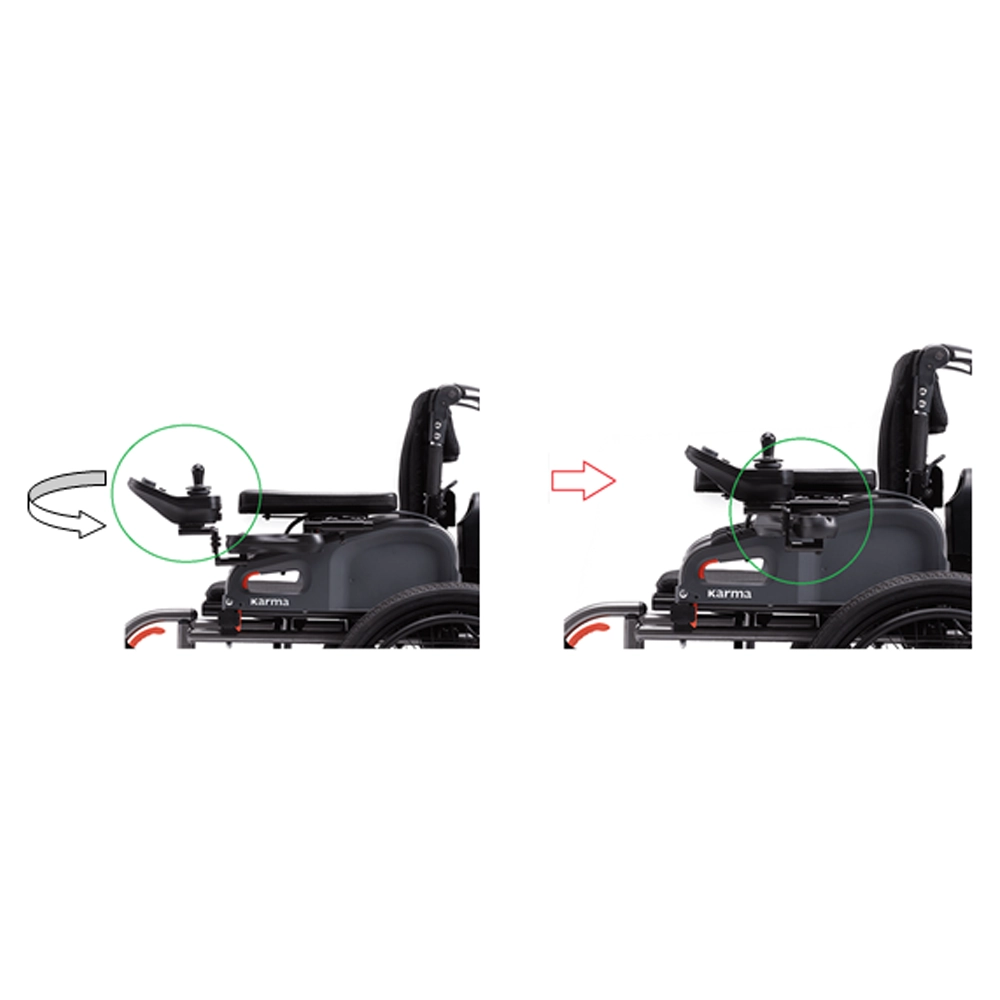

- The control panel swings out to the side to avoid the control panel from hitting the user.
With the edge of the table and reduce the gap between the cart and the table.

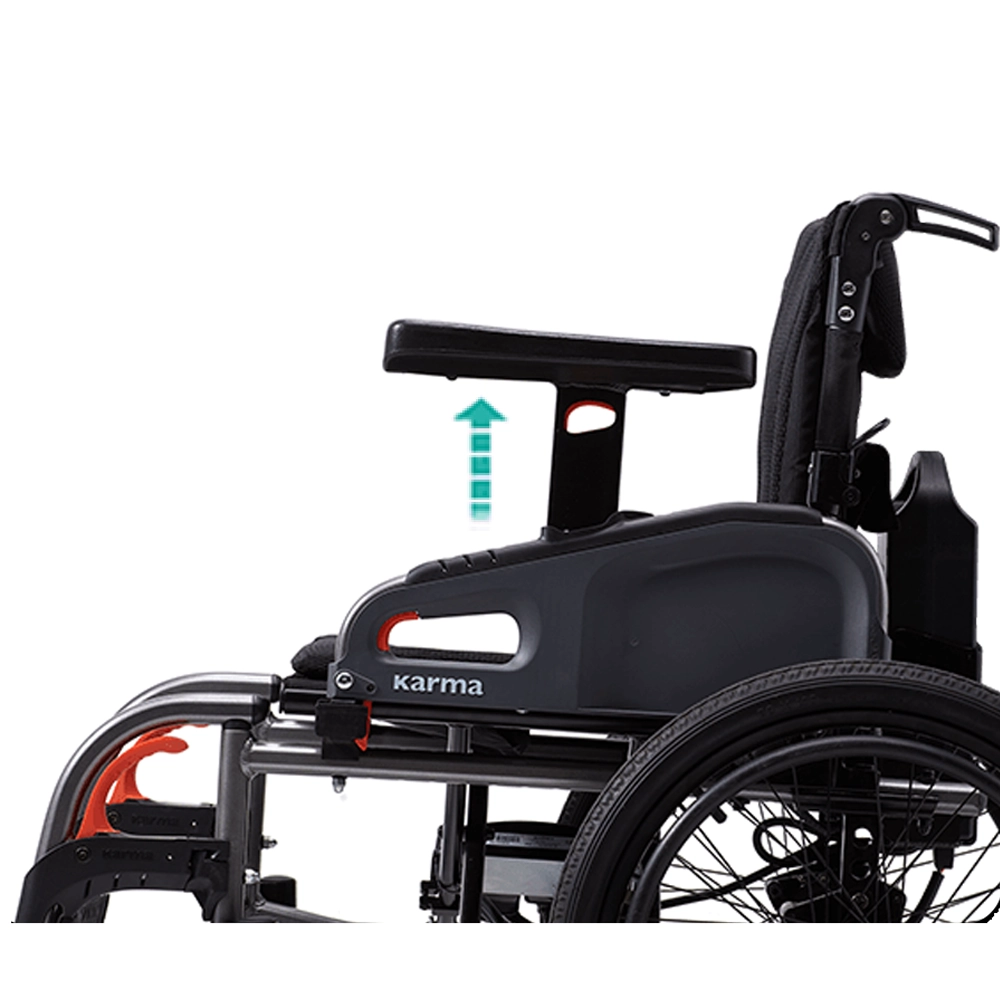

- The height of the armrests can be adjusted. Adjustable from 23 cm. up to 29 cm.

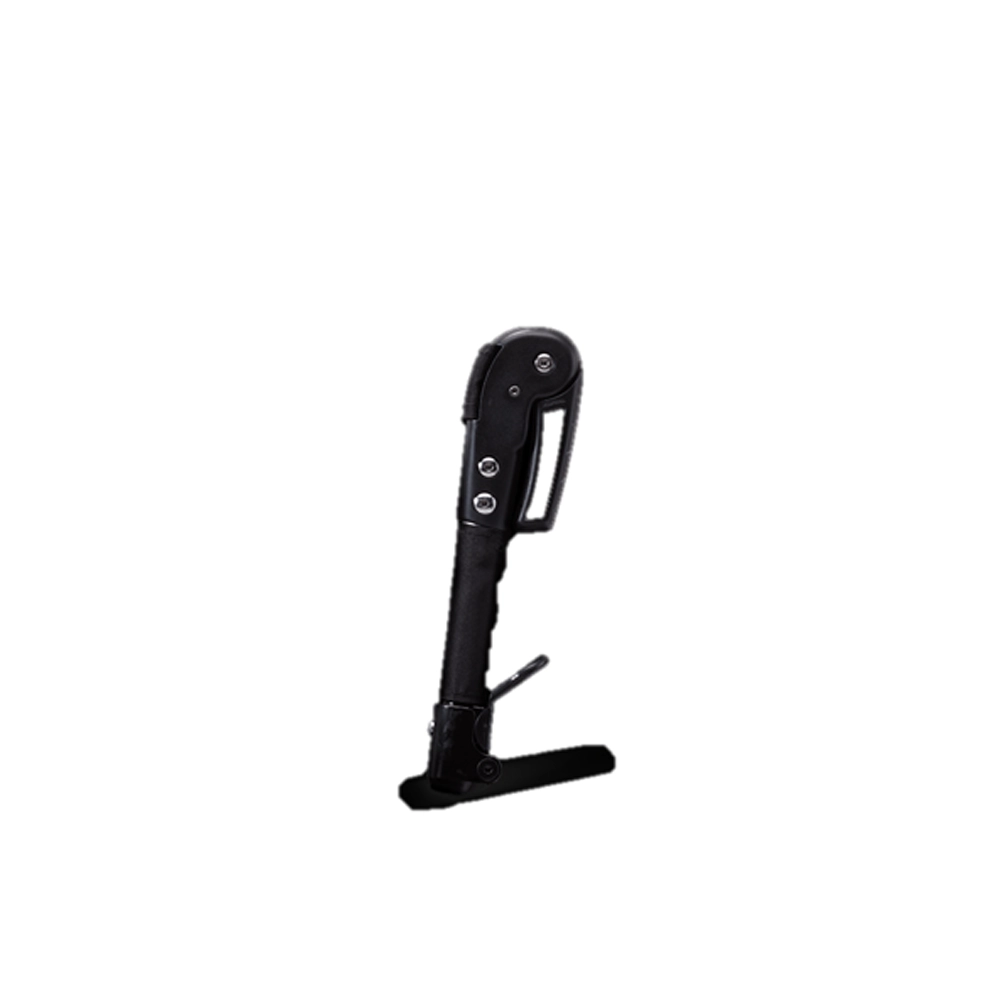

- The footrest can swing to the side, increasing the space in front of the wheelchair and also
The footrest can be removed without tools. The footrest pad is adjustable from 39 cm. Up to 51 cm.

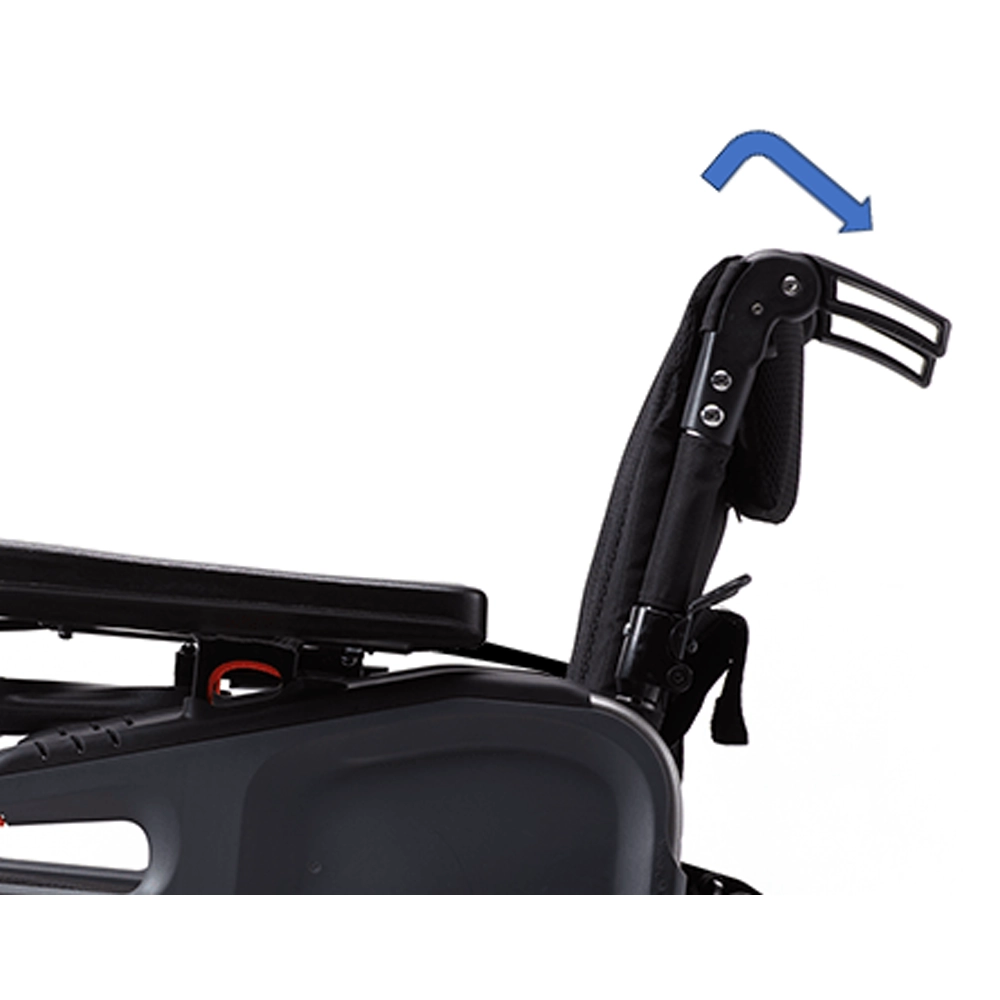

- Foldable push handle
- The design of the adjustable parts is orange to indicate
Let the user know that it is an adjustable part of the wheelchair.
- Adjustable backrest Adjust the angle of the backrest from -4° to 16°.

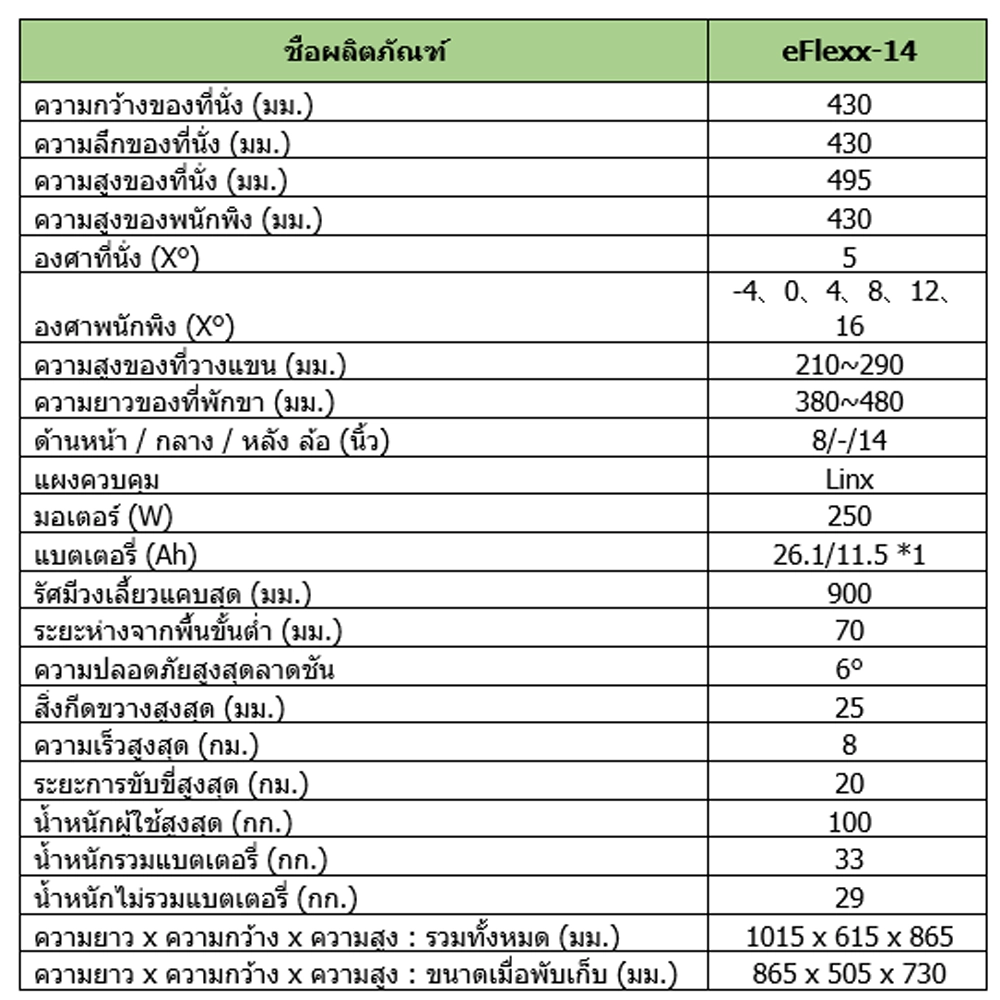

| Product name | eFlexx-14 |
| Seat width (mm) | 430 |
| Seat depth (mm) | 430 |
| Seat height (mm) | 495 |
| Backrest height (mm) | 430 |
| Seat angle (X°) | 5 |
| Backrest angle (X°) | -4、0、4、8、12、16 |
| Armrest height (mm) | 210~290 |
| Legrest length (mm) | 380~480 |
| Front/Middle/Rear Wheel (inches) | 8/-/14 |
| Control panel | Linx |
| Motor (W) | 250 |
| Battery (Ah) | 26.1/11.5 *1 |
| Minimum turning radius (mm) | 900 |
| Minimum ground clearance (mm) | 70 |
| Maximum safety on steep slopes | 6° |
| Maximum Obstacle (mm) | 25 |
| Maximum speed (km) | 8 |
| Maximum driving distance (km) | 20 |
| Maximum user weight (kg) | 100 |
| Weight including battery (kg) | 33 |
| Weight without battery (kg) | 29 |
| Length x Width x Height : Total (mm.) | 1015 x 615 x 865 |
| Length x Width x Height : Folded size (mm.) | 865 x 505 x 730 |
The tolerances for the actual size and data in the table are ±1 centimeter (cm) ±0.5 kilograms (kg).
