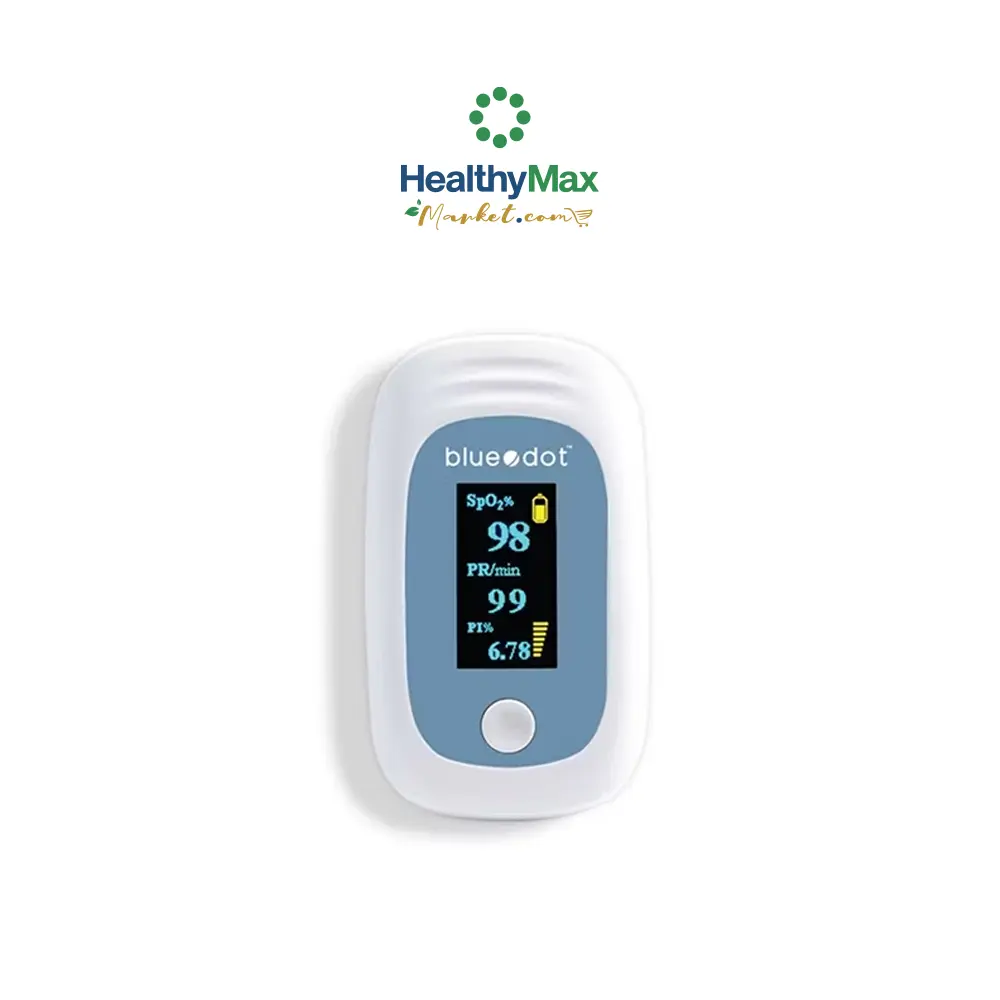

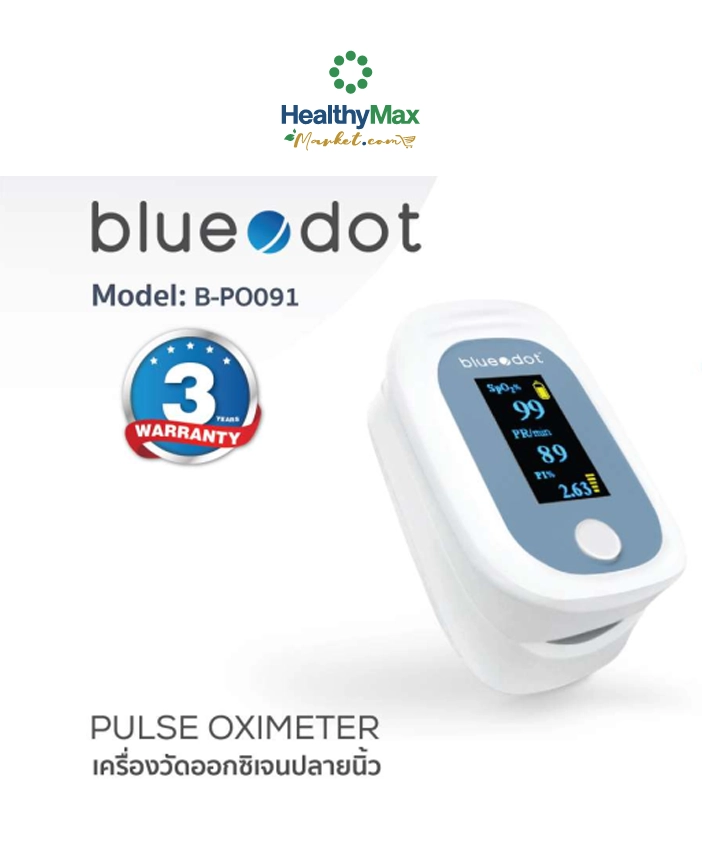

Fingertip oxygen meter BLUEDOT model B-PO091
BLUEDOT Pulse Oximeter with Bluetooth #B-PO091
Product details
- Displays capillary oxygen saturation (SpO2)
- Displays heart rate (PR) values (beats/minute), line graph and bar graph.
- Displays blood flow values (PI)
- Notify when SpO2 is higher or lower than specified.
- Turn on/off the heart rate sound.
- 1” 2-color OLED screen
- 4-way screen, press the button to change direction.
- Notification when the battery is low
- Finger sizes that can be used: thickness 7-25.4 mm.
- Connect data via Bluetooth® to applications on your smartphone.
- Uses 2 x 1.5V AAA batteries for long battery life. Can work continuously for 20 hours.
- Suitable for people at risk of low blood oxygen levels: bedridden patients, the elderly, heart failure, chronic obstructive pulmonary disease, asthma, hikers/climbers.
- Warranty: 3 years
Equipment inside the box
- 1 fingertip oxygen meter
- 1 x strap
- 2 AAA batteries
- 1 user manual
feature
Display information
- oxygen saturation.digital display screen
In the blood (SpO2)
- oxygen saturation digital display screen
- Pulse intensity(bar graph) Bar graph display screen
- Pulse wave, the display screen is smooth.
SpO2 Specifications
- Measuring range 35%-100% (resolution 1%)
- Accuracy 70%-100% : ±2%, below 70% not specified
- Optical sensor, red light (wavelength 660 nm)
Infrared light (wavelength 880 nm)
Oxygen saturation requirements
- Measuring range 30-250 bpm, (resolution 1 bpm)
- Accuracy: ±2 bpm or ±2%
oxygen concentration
SpO2 oxygen saturation (%)
- 99-94% normal
- 93-90% Level decreased: Consult a doctor.
- <90% critical level: must receive treatment
Method of use
- Insert 2 batteries in the correct direction and then close the cover.
- Turn on the device and place your finger as shown in the figure.
- Allows the user’s finger to insert into the rubber cushion of the clip. (Make sure your finger is in the correct position.) Then pinch your finger.
- Press the button once on the front panel.
- You should not shake your fingers. and move the body
- Information displayed on the screen
Maintenance
- Replace the battery when the low voltage symbol appears on the screen.
- Please clean the surface of the device before using. Wipe the device with medical alcohol first. Then let it dry or clean it with a dry cloth.
- Use alcohol to disinfect after use. To prevent infection for next use
- Take out the battery If the device has not been used for a long time
Caution : Read the warnings on labels and medical leaflet before use.
